    SG-S600S 45 degree double-head cutting saw

    Ask Lasest Price
    Brand Name : KM
    Model Number : SG-S600S
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 5 Pieces per Month
    Delivery Time : 15 days
    • Product Details
    • Company Profile

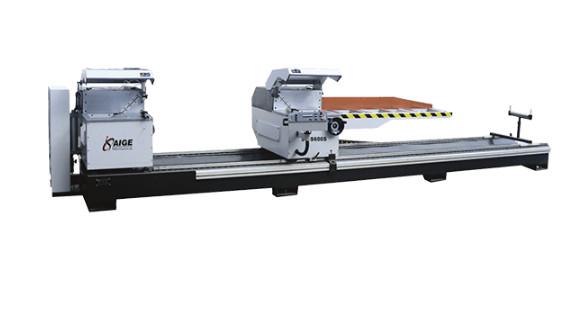

    SG-S600S 45 degree double-head cutting saw

    SG-S600S

    45 degree double-head cutting saw

    The machine is mainly used for cutting aluminum alloy doors and Windows, sun room, aluminum curtain wall and industrial aluminum multi-angle cutting, two head vertical (45-90 degrees) can realize arbitrary rotary swing Angle cutting and the workbench’s level (22.5 degrees – 135 degrees) at any Angle cutting, imported CNC positioning system, two head controlled by servo motor driven ball screw vertical pendulum Angle, the workbench’s level rotation at any Angle by servo reducer and high-precision measuring arc discussed.

    Technical Parameters

    power380V/50HZcutting size

    150mmX150mm

    70mmX120mm

    Total power6.2KWcutting angle45°
    motor power2X3KWsaw blade

    Ø600mmX30X4.4X144T

    Ø500mmX30X4.4X120T

    blade rotary speed2840r/ minblade feeding speed0-10m/min
    Positioning wayDORcutting length

    460mm-5200mm

    380mm -5200mm

    positioning tolerance±0.1 mmair pressure0.6-0.8Mpa
    Tilting tolerance±3·coolingmist cooling
    control modeManual controlPLC Controller14point
    Machine dimension6500mmX1100mmX1660mmmachine weight1400kg
