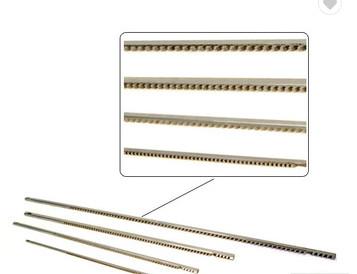

    KM Keyway broach

    Ask Lasest Price
    Brand Name : KM
    Model Number : kmhardwaretool
    Certification : Factory Certificate
    Price : Negotiable
    Payment Terms : T/T, Western Union
    Supply Ability : 3000 Pieces per Month
    Delivery Time : 5-8 work days
    • Product Details
    • Company Profile

    KM Keyway broach

    Keyway broach

    Specifications

    1. Accuracy: Class : DIN, TSZ 2102K, HES, SES, ANSI B92.1, BIS etc

    2.Delivery Times: 25 days.

    3.16 years manufacture of gear hobs, Shaving butter, shaper cutter and broaches.

    4.Type: pull, involute spline broach


    Announcements for Customers

    Please tell us those important data!

    1.What's the module,key amount, nominal dia, key width, overall length, broaching length of the keyway broach?

    2.What's the material?

    We provide you HSS M2(W6Mo5Cr4V2), HSS M35(S705), W9341, and power metallurgy(S390)

    3. What's the coating?

    We provide you TIN couting, TIAIN Coating or uncoated

    4.What's the Accuracy level?

    You can have Accuracy gade AA and Accuracy gade A

    5.Which do you perfer, keyway broaching or Non-standard keyway broach ?


    Technical Specification involute spline broach

    1.Material: HSS high speed steel

    2.Item: 3#-14#

    3.broaching length:18mm-120mm

    4.total length:560mm-1450mm

    5.width:4-14

    6.Pre-broaching:6-30

    7.finish Higth:7.6-32.6


    Coating and material

    (for material weprovide you material as follows you reference)


    For Material


    1.High speed Steel M2 .

    Component: W6Mo5Cr4V2, .

    Delivery Hardness ≤ 255HB .

    Harding Temperature: 1220-1240 Degrees .

    Hardness ≤ 63 .

    Common Used Material


    2. High Speed Steel M35(S705) Provided by the Bohler in Austria.

    Co4.8% .Hardness≥ 64HRC .

    High Toughness HSS .

    High wearability .

    High Pressure Resistant .

    Resistance to Sintering .

    Better Material


    3. Powder Metallurgy .The Best Material


    For Coating

    TiN Coating Microhardness(HV): 2300

    Coefficient of Friction(COF): 0.40

    Innerstress(Gpa): -2.5

    Maximum Reaction Temperature: 600

    Centigrade Color: Golden Yellow

    Coating Structure: Monolayer .


    TiALN Coating Microhardness(HV): 3300

    Coefficient of Friction(COF): 0.30-0.35

    Innerstress(Gpa): -1.3/-1.5

    Maximum Reaction Temperature: 900 Centigrade

    Color: Purplish Gray

    Coating Structure: Nano-Stuture


    Wide Range of Option(Supply for the following broach cutter)


    SPLINE BROACH:

    1. Straight Sided Broach

    2. Involute Spline Broach

    3. Serration Broach

    4. Trapezoidal Broach

    INTERNAL HOLE BROACH:

    1. Square Broach

    2. Round Broach

    3. Rectangular Broach, Hexagon Broach

    4. Irregular Shapes Broach etc.

    KEYWAY BROACH:

    1. With or without Chamfer Broach

    2. Convex Broaches / Concave Broach.

    3. Combined Round Broach & Single Keyway Broach etc

    Keyway broach


    Specification of Hss Keyway broach
