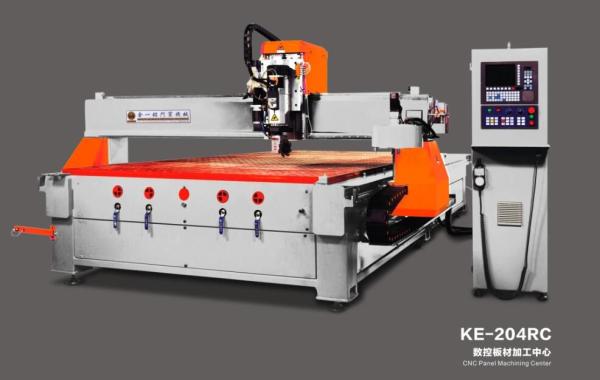

    CNC Panel Machining Center

    Ask Lasest Price
    Brand Name : KM
    Certification : Factory certificate
    Price : Negotiable
    Payment Terms : T/T, Western Union
    Supply Ability : 10 Piece/Pieces per Month
    Delivery Time : within 40 days from date of deposit
    • Product Details
    • Company Profile

    CNC Panel Machining Center


    Specially for the processing of panel materials, for example aluminum composite panel,
    aluminum solid sheets, wooded sheets, and some metal sheets except stainless
    steel sheets. And also for the processing of aluminum profiles. Adopts Germany
    made open CNC system, programmable, easy to use. Can offer the processing of drilling holes, engraving, copying, end milling, etc...just according to the program


    MAIN TECHNIQUE PARAMETER

    1.Work area: X/Y/Z axis4020/2020/200mm
    2.

    Working accuracy Locating

    Repeat locating

    Drilling sag

    Cylinder

    Cutting surface roughness

    +/-0.08mm

    +/-0.02mm

    0.1/100mm

    0.1mm

    Ra12.5um

    3.Speed of feeding: X/Y/Z42/32/18m/min
    4.Blade exchange time20 seconds
    5.Spindle: Power/rev5.5Kw / 24000 rpm
    6.Servo motor(YASKAMA): X/Y/Z/C/R (Tools store)0.85+0.85/0.85/0.85/0.4/0.4 Kw
    7.Max. collet diameterø16
    8.Voltage/total power380V50HZ/10KW
    9.Overall dimension of lather (L×W×H)4900 x 3200 x 1755mm
    10.Overall dimension of control box (L×W×H)600 x 1400 x 1800mm
    11.Power supply20KVA
    11.Operation air pressure0.6~0.8Mpa
