    SG-D5600 pneumatic long head drilling machine

    Ask Lasest Price
    Brand Name : KM
    Model Number : SG-D5600
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 5 Pieces per Month
    Delivery Time : 15 days
    • Product Details
    • Company Profile

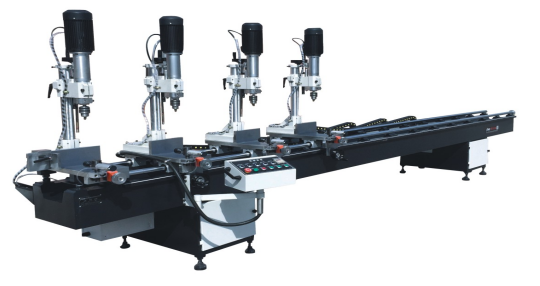

    SG-D5600 pneumatic long head drilling machine

    SG-D5600 pneumatic long head drilling machine‘



    Product introduction: Product introduction

    The equipment is mainly used for processing through hole or through hole on curtain wall, aluminum alloy profiles, industrial profiles and window materials. Set around a

    With positioning device, left and right can be processed at the same time; Due to the use of motor, cylinder direct output power head, thus drilling more stable, high precision. This machine can be installed drilling chuck and porous device, one clamping can drill holes, processing is convenient, quick, high efficiency.


    Technique data

    1, power supply... Three phase 380 v / 50 hz

    2, the spindle motor power... 4 x1. 5 kw

    3, spindle motor speed... 2800r/min

    4, processing effective length... 6500mm

    5, the size of the table... 240mmX220mm

    6, longitudinal adjustable stroke... 60mm

    7, up and down adjustable stroke... 150mm

    Number 8, power head... six

    Number 9, three drill... six

    10, running mode... pneumatic

    11, work pressure... 0.6-0.8 MPa

    12, pneumatic head minimum distance... 245mm

    13, adjustable drilling package size... 20mmX112mm

    14, the biggest borehole diameter... Phi is 15 mm

    15, the size of the machine... 6300mmX1150mmX1850mm

    Total 16, machine... 1600kg

    Quality SG-D5600 pneumatic long head drilling machine for sale
