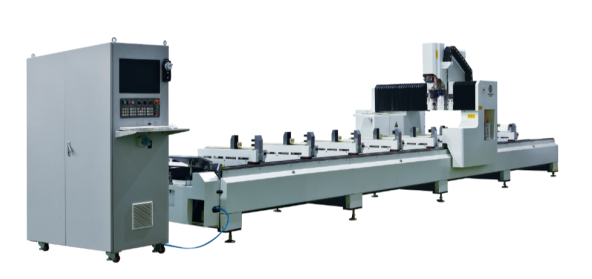

Brief description:
1. Suitable for all kinds of aluminum profile installation hole,
water tank, keyhole, shape hole and other processing procedures.
2. The processing of all holes and grooves on the same processing
surface can be completed in one loading card, which has high
working efficiency.
3. Workbench: movable workbench; Pneumatic clamping, table height
from the ground 800mm.
4. With 6 stations moving rotary tool library, automatic tool
change.
5. Operating system: Germany PA numerical control system.
6. Automatic lubrication system: movement mechanism central
intermittent automatic lubrication;
7. Cooling mode of tool: oil mist cooling system.
8. Two sets of end positioning device: the use of turning plate
type positioning baffle for X direction positioning, can be divided
into front and rear double position processing.
9. Tool alignment function: the spindle tool automatically adjusts
the length of the tool and updates it accordingly with the program;
10. Safety protection: anti-splash; Job warning; Protection of
working area;
2. Main technical parameters
Project unit DG-606R
Machining size X mm 6500
Y mm 600
Z mm 300
Machining precision positioning mm ±0.1
Repeated positioning mm ±0.05
Drilling and milling verticality mm/mm 0.1/100
The surface roughness of the cutting surface is um ra6.3um
Feed speed X axis m/min 90
Y 40 m/min
The Z axis 20 m/min
Tool change time S 5
Spindle power/speed KW/RPM 9.6/24000
Servo motor
(Yaskawa, Japan) X Kw 1.80
Y 0.85 Kw
Z 0.85 Kw
R(tool store) KW 0.4
Shank ISO30 ER32 mm Ø 20
Machine dimensions mm length 7500× width 1800× height 1600
The external dimension of the electric cabinet is mm 1200×1600×600
Required power source KVA 13KW 380V 30A
Pressure Mpa 0.6 ~ 0.8
