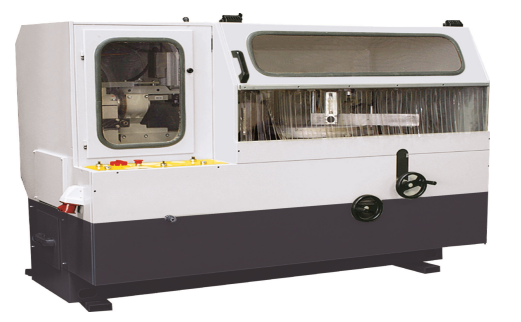

SG-L550V curtain wall interface cutting saw

Product introduction: Product introduction

The machine is mainly used for cutting the end face Angle interface of various aluminum alloy profiles, two hard alloy saw blades according to the Angle required by the interface through the hand wheel can realize any Angle (±45 degrees) digital display adjustment, adjustment is simple and convenient, using imported atomization cooling system, cutting precision is high and good finish

技术参数Technique data

1,机器电源Power.................................................3相380V/50HZ

2,电机功率 Blade motor................................................2 X3KW

3,锯片尺寸Blade size ...................................Ф600mm×30×4.2×144T

4,切割进给速度Cutting feed speed.......................0-10m/min

5,电机转速Motor speed.................................2840r/ min

6,机器总功率Total power.................................................6.1KW

7,切割角度Cutting angle.....................................±45°

8,切削精度Cutting precision ............................................±0.1

9,数显表DOR................................................2XM10

10,切割尺寸(LXW)Max cutting size...................300mmX220mm

11,切削冷却Cutting cooling..............................雾化冷却

12,机器气压Max power.................................０.6-0.8Mpa

13,机器尺寸(LXWXH)Overall size......................2800 mmx1300mmx1800mm

14,机床重量 weight.........................................................750Kg
