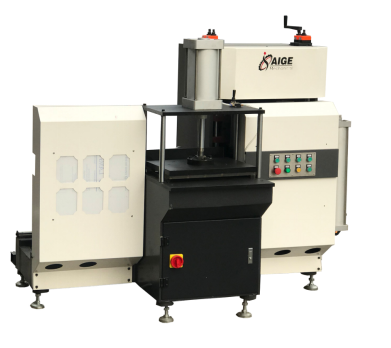

SG-L250A Five-tool End Milling Machine

Product introduction: Product introduction

The machine is mainly used for cutting all kinds of aluminum alloy profile face milling tenon, using linear track material fixed cutter into the milling structure, improve the accuracy and use range of processing, the tool can be adjusted up and down before and after, easy to understand the operation and high efficiency.

技术参数Technique data

1,机器电源Power.................................................3相380V/50HZ

2,电机功率 Blade motor..................................3KW+2X2.2KW+1.5KW

3,锯片尺寸Blade size ..................................Ф305×Ф25.4×3×120T

4,锣刀尺寸Miller size..............................Ø250mmX30X6X60T

5,切割进给速度Cutting feed speed.......................0-10m/min

6,电机转速Motor speed.................................2840r/ min

7,刀具水平调节Level adjustment..........................0～110mm

8,刀具垂直调节Vertical adjustment.........................0～250mm

9,机器总功率Total power....................................................9KW

10,工作台尺寸(LXWXH)Worktablesize...............600mmx500mmx220mm

11,切割角度Cutting angle......................................90°

12,切削精度Cutting precision ...........................................±0.05

13,切削冷却Cutting cooling...............................雾化冷却

14,机器气压Max power...................................０.6-0.8Mpa

15,机器尺寸(LXWXH)Overall size........................2000mmx1250mmx1680mm

16,机床重量 weight..........................................................860Kg
