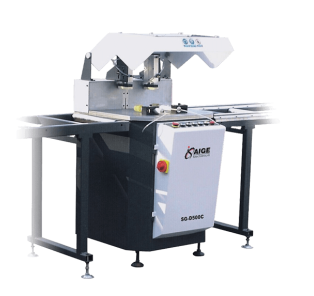

SG-D500C single head cutting saw

Product introduction: Product introduction

The machine is mainly used for cutting aluminum alloy door and window profiles, heat dissipation panels and industrial aluminum profiles, high-power direct motor to reduce the rotating loss of the belt, through the linear guide gas-liquid stepless feed cutting. The cutting speed is fast and accurate, the Italian digital positioning system can be installed, the adjustment is simple and convenient, it is the ideal equipment to improve the cutting precision and production efficiency.

技术参数Technique data

1,机器电源power................................3相380V/50HZ

2,电机功率Blade motor ..................................3KW

3,锯片转速blade rotary speed.......................2840r/ min

4,最大定位尺寸Max positional size...........................0-3000mm

5,托料架长度Length of location frame...................4000mm

6,定位精度positioning tolerance....................±0.05 mm

7,切割尺寸(wxh)cutting size.......................240mmX130mm

8,切割角度cutting angle...............90°(angular offset≤5分

9,锯片尺寸saw blade........................Ø500mmx30x4.2x120T

10,切割进给速度blade feeding speed..................0-10m/min

11,机器气压air pressure............................0.6-0.8Mpa

12,控制器PLC Controller...................................14位

13,切削冷却cooling....................................雾化冷却

14,数显表DRO..............................................PT68

15,机器重量machine weight................................600kg

16,机器尺寸(长X宽X高)......................860mmX700mmX1400mm
