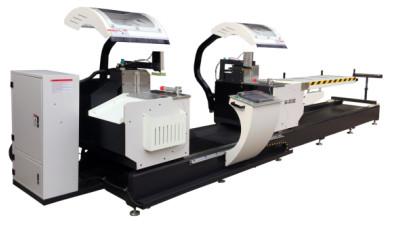

    SG-S550C CNC Double-head Cutting Saw

    Ask Lasest Price
    Brand Name : KM
    Model Number : SG-S550C
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 5 Pieces per Month
    Delivery Time : 15 days
    • Product Details
    • Company Profile

    SG-S550C CNC Double-head Cutting Saw


    SG-S550C CNC Double-head Cutting Saw


    产品简介Product introduce


    This machine is mainly used to cut various aluminum alloy profiles, especially suitable for cutting aluminum alloy door edging profiles. The two heads can cut independently or at the same time. It adopts a closed-loop positioning numerical control system and drives a precision rack through a high-precision star reducer. Perform positioning, stable operation and high precision. As long as you set the parameters you need on the touch screen, the machine will automatically detect and adjust the data you need, with high ranging accuracy, stable and reliable operation; it can be connected to ERP office software, which is an ideal equipment to improve production efficiency and processing accuracy .


    技术参数Technique data

    1,机器电源power.................................3相380V/50HZ

    2,机器总功率Total power............................................6.8KW

    3,锯片电机功率motor power ..............................2X3KW

    4,锯片转速blade rotary speed........................2840r/min

    5,定位精度positioning tolerance......................±0.05mm

    6,摆角精度Tilting tolerance................................±2

    7,切割尺寸(wxh)cutting size....90°=200mmX170mm/45°=150mmX125mm

    8,切割角度cutting angle.................................45°-90°

    9,锯片尺寸saw blade........................Ø550mmx30x4.2x144T

    10,切割进给速度blade feeding speed...................0-10m/min

    11,切割长度cutting length.........................460mm-4500mm

    12,机器气压air pressure.............................0.6-0.8Mpa

    13,角度控制方式The Angle control ...............................电控

    14,定位伺服电机positioning servo...............................0.75 kw

    15,触摸屏尺寸contact touch screen size...................10.2寸

    16,控制方式control...........................触摸屏数字输入控制

    17,切削冷却cooling....................................雾化冷却

    18,机器尺寸(LXWXH)........................5800mmX1600mmX1860mm

    19,机器重量machine weight................................2000kg
